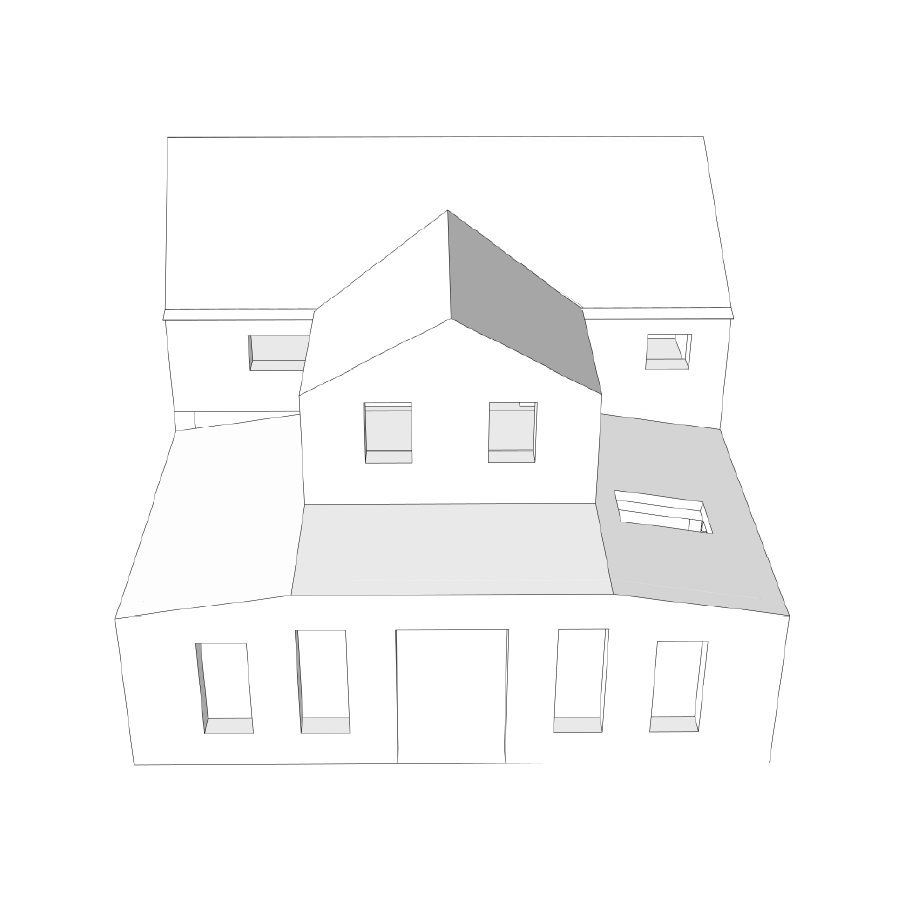

3D Masssing
Plan Detail

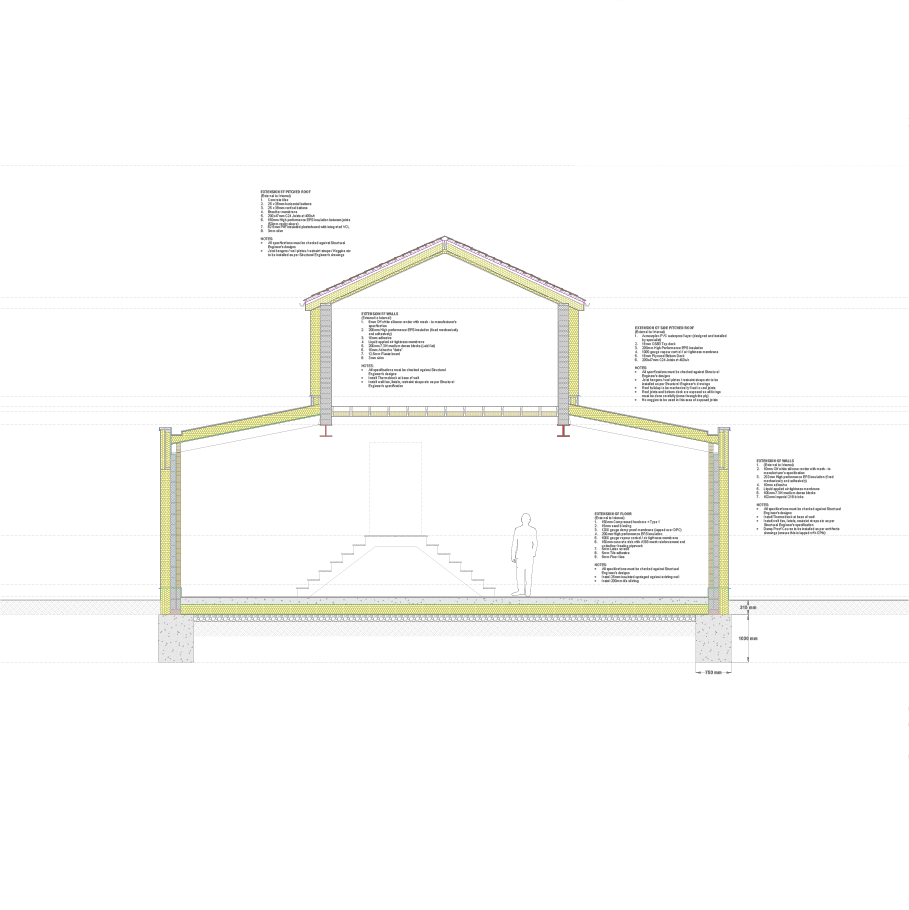

Cross Section Detail
This rennovation and extension required a comprehensive technical design package for a retrofit eco-home with demanding building fabric and performance requirements. The brief centred on translating an approved design into a detailed specification to ensure the project was delivered on time, budget and to the correct building regulation requirements. Detailed construction drawings, junctions, and specifications were developed in close coordination with structural engineers, party wall surveyors, and building control, ensuring compliance and buildability. A complex system of building fabric, detailing and sustainable technologies were used to achieve a carbon neutral end home. During the build, project management responsibilities included programming, tendering, material procurement, and on‑site technical resolution. Regular coordination with the contractor supported smooth delivery and responsive decision‑making as site conditions evolved.
